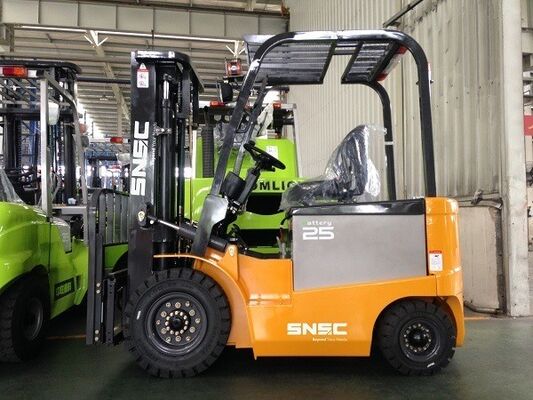

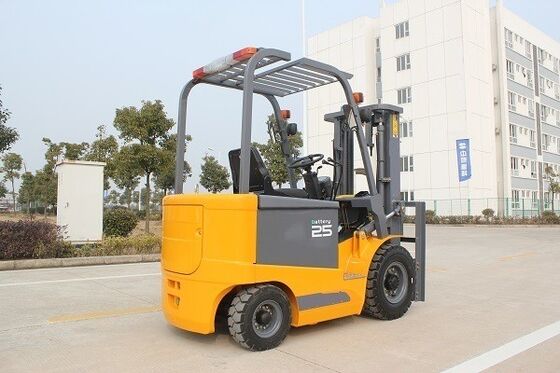

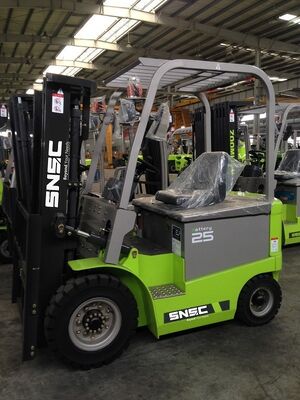

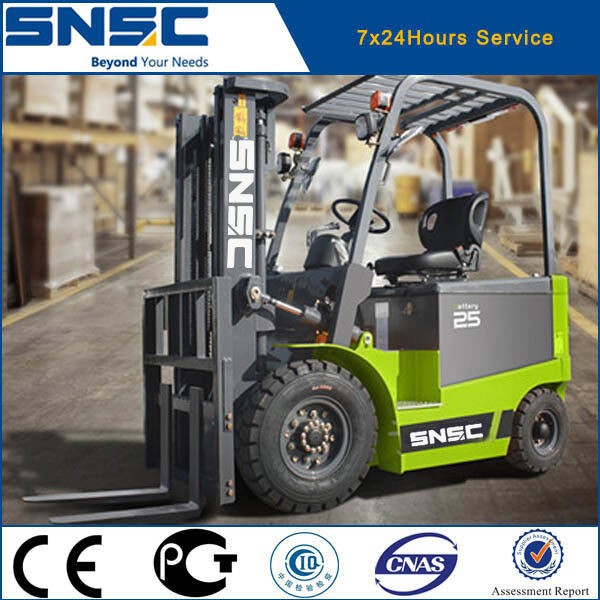

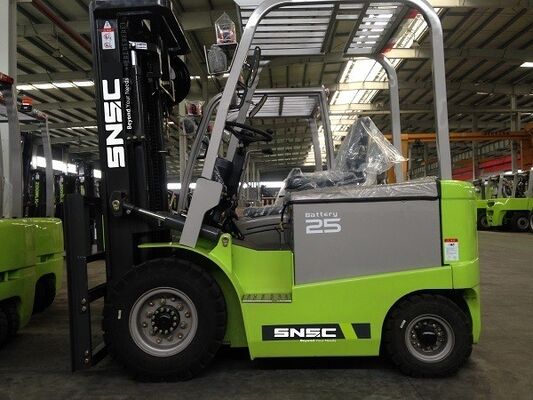

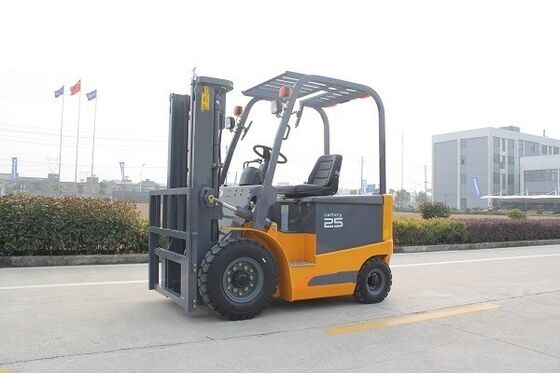

Main Features for SNSC brand 4 wheel battery power 2.5 ton electric forklift trucks
1) Our 2.5tons electric forklift truck equip with full electric AC brushless, maintenance-free, and low cost.
2) 2.5t battery powered electrical forklift lifter truck with JAPANESE hydraulic system, like JAPAN SHIMADZU brand hydraulic pump and muti-way control valves, which can guarantee our snsc 2.5t forklift's best performance;
3) SNSC 2.5ton electrical lifter truck forklift installed famouse USA EATON brand steering gear, which makes our snsc forklift have longer working life;
4) Our SNSC FB25 2.5ton electric forklift equips with imported USA CURTIS controller;
5) We can do all kinds of lifting height and masts according to customer's requirments, like: duplex full free 3m mast, triple full free 4.5m mast, triplex full free 5m mast, triplex full free 6m mast.
6) Our SNSC 2.5ton electric forklift use chinese top brand LISHI brand battery, and GERMANY HOPPECKE battery for your choice.
7) Chinese best quality SHANGHAI SHINENG brand charger is included in our 2.5ton electric forklift truck.
8) SNSC electric forklift truck can install different attachments to help your work, like side shifter, rotators, tyre clamps, material sender, fork clamp, drum clamp, lifting arm, paper roll clamp, full free container mast, bale clamp, carton clamp, block clamp, cabin, etc.
Specifications of SNSC 2.5 ton battery power electric forklift truck
This is our standard 2.5ton electric forklift techincal specifications.
We also can customized the fork lifter according to our customer's demands and working conditions.
| SPECIFICATIONS of STANDARD SNSC FB25 2.5TON EIECTRIC FORKLIFT |
|
| No. |
Specifications |
Unit |
FB25 |
| 1 |
Characteristics |
Power |
|
battery |
| 2 |
Capacity |
kg |
2500 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
145 |
| 6 |
Forks L×W×H |
mm |
1070×122×40 |
| 7 |
Mast tilt angle Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2090 |
| 9 |
Min. right angle stacking width |
mm |
3760 |
| 10 |
Min. right angle Aisle width |
mm |
2040 |
| 11 |
Min.ground clearance |
mm |
110 |
| 12 |
Overhead guard height |
mm |
2150 |
| 13 |
Height from seat to overhead guard |
mm |
1005 |
| 14 |
Front overhang |
mm |
470 |
| 15 |
Perf |
Max.traveling speed(loaded) |
km/h |
13 |
| 16 |
Max.lifting speed(loaded) |
mm/s |
270 |
300 |
| 17 |
Gradeability |
% |
15 |
| 18 |
Dimensions |
Overall length (without fork) |
mm |
2310 |
| 19 |
Overall width |
mm |
1150 |
| 20 |
Mast extended height(with bracket) |
mm |
4030 |
| 21 |
Mast lowered height |
mm |
1990 |
| 22 |
Chassis |
Tire |
Front |
|
7.00-12-12PR |
| 23 |
Front |
|
7.00-12-12PR |
| Rear |
|
18×7-8-14PR |
| 25 |
Wheelbase |
mm |
1450 |
| 26 |
Tread width |
Front/Rear |
mm |
960/950 |
| 27 |
Curb weight |
None-load |
kg |
4050 |
| 28 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
48/630 |
| 29 |
Motor |
Traveling |
KW |
11 |
| 30 |
Lifting |
KW |
10 |
14 |
| 31 |
Controller |
CURTIS |
| 32 |
Control type |
100%AC |
| 33 |
Working pressure |
Mpa |
17.5 |
SNSC 3.5 ton electric forklift truck with triple 4.2m mast and side shifter
Our SNSC FORKLIFT TRUCKS Factory Show
We, SNSC fork lifter factory, are top 3 forklift montacargas manufactures and top 20 in the world. with 130,000 square meters production area, over 500 employees,30,000 units forklifter diesel truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are responsible for our customers and forklifters.
''QUALITY LEADING THE FUTURE" is our belief forever.
We'd like to offer our best quality forklift trucks to our customers from all over the world.
SNSC brand FB25 2.5tons BATTERY powered ELECTRIC FORKLIFT TRUCK DELIVERY SOLUTIONS:
Our 2.5ton electrical forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2.5tons electric forklifts;
one 40'GP container can hold 6units 2.5ton electric forklift trucks.
Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
If you have interests in our snsc forklift, welcome you to contact Nicole
FAQ time:
1. Can you customize and design forklift truck as the clients' requirement?
We will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
2. How long is the warranty of your products?
All of forklifts warranty time is with 12 months / 2000 working hours begins from the forklift arrival date of oversea subject to the first.
3. Can you produce the products labeled with the client's brand?
Yes, we can! With the authorization of the brand, we can OEM for our clients.
4.How we can get the forklift spare parts ?
We will be send you some wear spart part free for you when we dilivery the forklift.
If needed urgent after sell, we will send you parts in 24 hours for you.
5. What's the payment terms do you accept?
TT / LC or according customer's condition.
6. Delivery date?
If clients need normal products, we will deliver the products within 25days.
If clients need customerized products, the delivery date depend on the requirements.
